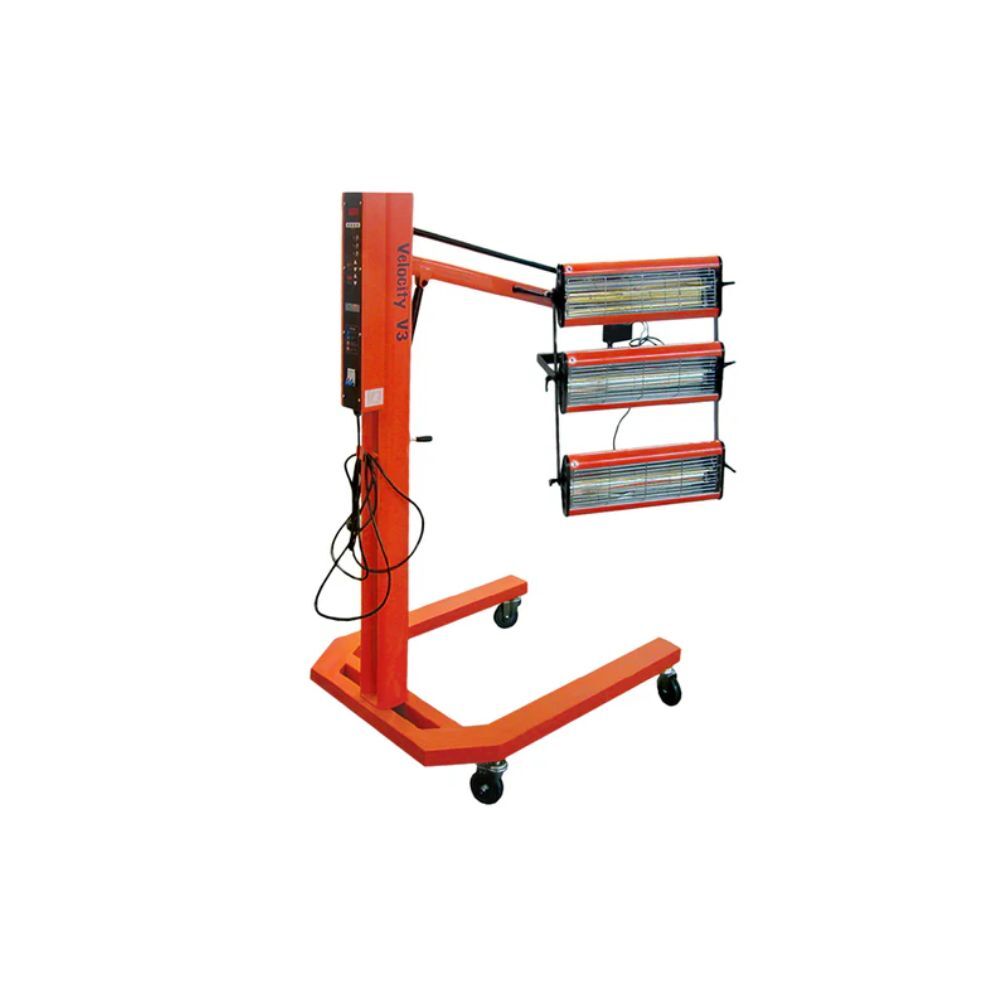

The Velocity Head Infrared Drying Head 3 (V3) is a powerful, professional-grade shortwave infrared drying system built for high-efficiency automotive refinishing. Designed for larger repair areas, this triple-head unit delivers superior heat coverage and faster curing times, making it ideal for busy panel shops and spray booths.

Equipped with three 1050W emitter tubes, the V3 produces consistent, even heat penetration to ensure thorough curing from the inside out. With a wide coverage area of 1.0m x 0.8m and drying times of just 15–30 minutes, it significantly reduces downtime while maintaining a high-quality finish.

The integrated LED display allows for easy monitoring and control of timing settings, while pneumatic assistance ensures smooth and effortless positioning for optimal workflow.

Key Features:

• Triple shortwave infrared emitters for maximum coverage

• 3 x 1050W emitter tubes

• Maximum Power: 3150W

• Adjustable timing range: 2 x 35 minutes

• Fast drying time: 15–30 minutes

• Temperature range: 60–70°C

• Coverage area: 1.0m x 0.8m

• LED display for precise control

• Pneumatic assistance for easy adjustment

• Input Voltage: 240V 50Hz (Single Phase)

• Input Current: 13.7A

• CE Compliant and C-Tick Approved
